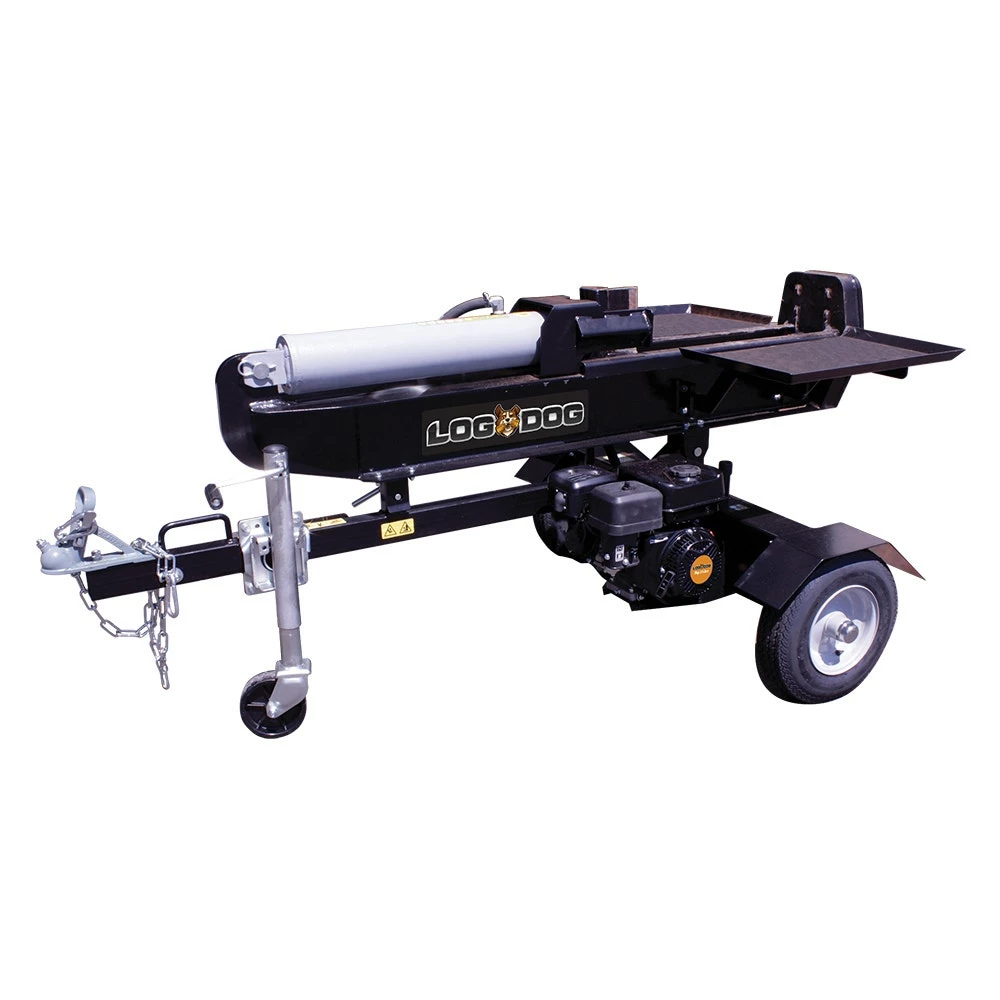

LOG DOG 35T 7hp 610mm Log Splitter LD35T

• Powered by 7HP 212cc engine
• 35 tonnes of ram force
• Fast and efficient 2-way log splitter – horizontal and vertical
• Jockey wheel
• Prefilled with hydraulic oil

Specifications:

Log Splitter:

• Max Splitting Force 35T
• Max Log Length 610mm
• Cylinder Cycle Time 14.3s
• Pump Size 14 GPM, 2 Stage
• Hydraulic Cylinder Length 859mm
• Hydraulic Cylinder Bore 114mm
• Hydraulic Cylinder Stroke 575mm
• Hydraulic Rod Diameter 45mm
• Hydraulic Oil Capacity 24L
• Hydraulic Oil Required To Fill 18L
• Replacement Filters Built-in sealed filter
• Hydraulic Oil Type ISO22

Engine:

• Engine Type Single Cylinder – 4 Stroke Air Cooled OHV
• Engine Horse Power 7HP
• Displacement Cc 212cc
• Engine Stroke 4
• Fuel Tank Size (L) 3.6L
• Fuel Type Regular Ron 91
• Oil Capacity (L) 0.6L
• Spark Plug Type F7RTC or equivalent
• Start Type Recoil
• Torque @ 2500Rpm 13.5
• Rpm 3600 RPM
• Low Oil Shutdown Yes

Additional:

• Jockey Wheel YES
• Max Towing Speed 45MPH(70KPH)
• Hose Wire Braided Hose
• Beam Heavy duty H-shape construction
• Work Table 2
• Wedge Guard YES
• Wheel Fenders YES
• Rear Wheel Size 16″
• Horizontal/Vertical Split YES
• Safety Chains YES
• Dimension 2210mm × 1219mm × 965mm
• Dry Weight 247.5kg
